Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining

Name: Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining
Brand: Hebei xingkuan
Price: 1 USD

$Quality Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining for sale$ $Quality Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining for sale$ $Quality Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining for sale$ $Quality Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining for sale$

Brand Name : Hebei xingkuan

Model Number : Flex Metal,hexagonal cellular mesh grating for refractory lining

Certification : Bv ,sgs , ce , Iso

Place of Origin : Hebei ,China

MOQ : 1 square meter

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000M2/day

Delivery Time : 5-8 working days

Packaging Details : Pallet , or wooden case

Item : Flex Metal,hexagonal cellular mesh grating for refractory lining

Material : Carbon steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.

Sheet thickness : 1.0mm-3.0mm (12Ga,14Ga,16Ga )

Hole size : 30-100mm

Hole type : lance or bonding hole

Mesh deepth : 10-30mm

Processing : Hole punching , mold shape punching , Manual assembly

Applications : for refractory linings in furnaces, reactors, cyclones, ducts, and flues.

Contact Now

Flex Metal,hexagonal cellular mesh grating for refractory lining
Descriptions :

Flex metal refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

Different Types of Hexmesh:

L type mesh – this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
H type mesh – instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.
Punch tabs
Hex, C & S-Bars

$Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining$

Specifications:

Material: Carbon steel 0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.
Hole distance: 2 cm - 6 cm.
Mesh thickness: 1 cm - 2.5 cm.
Panel thickness: 1 mm - 3 mm.
Mesh size: 30 mm 40 mm 48 mm 50 mm 60 mm 80 mm 100 mm.
Connection Type: Inner buckle lock riveting outer buckle lock riveting.

Material	Height(mm)	Thickness(mm)	Hole(mm)	SPEC.NO	Area(m2/sheet)	LXW(mm)
Carbon steel	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
Carbon steel	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
Carbon steel	15	1.5	50*50	15-1.5-50*50	1	1550*650
Carbon steel	15	1.75	50*50	15-1.75-50*50	1	1550*650
Carbon steel	20	1.75	50*50	20-1.75-50*50	2	1550*1300
0Cr13	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr13	20	1.75	50*50	20-1.75-50*50	1.9	1550*1230
0Cr13	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
0Cr13	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
304	8	1.2	40*40	8-1.2-40*40	0.6	1070*562
304	10	1.2	50*50	10-1.2-50*50	1	1550*650
304	20	1.75	50*50	20-1.75-50*50	1.88	1540*1225
304	25	1.75	50*50	25-1.75-50*50	1.9	1550*1230
304	40	1.75	50*50	40-1.75-50*50	1.9	1550*1230
S32205	10	1.2	40*40	10-1.2-40*40	0.73	1340*590
0Cr25Ni20	10	1.2	40*40	10-1.2-40*40	0.6	1070*562
0Cr25Ni20	20	2.0	50*50	20-2.0-50*50	customized is available

Applicaions :

Flex metal refractory lining is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Flex metal refractory lining is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.

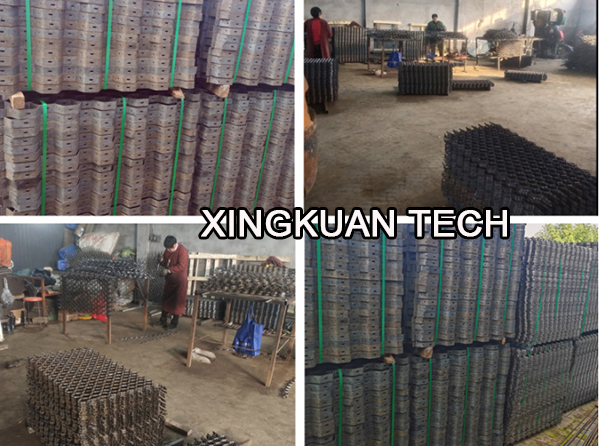

Photo Gallery :

$Flex Metal Hexagonal Cellular Mesh Grating For Refractory Lining$
